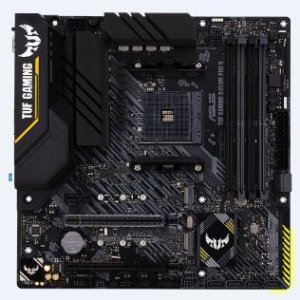

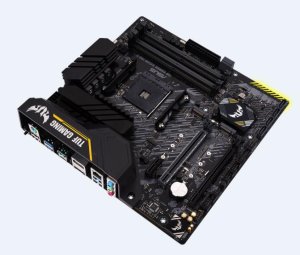

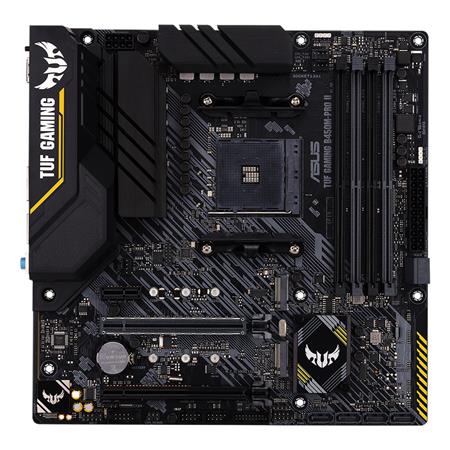

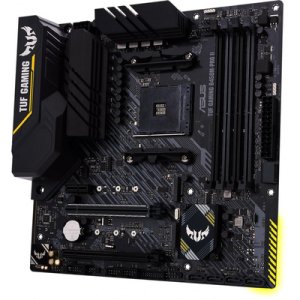

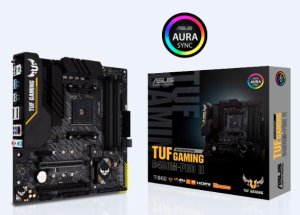

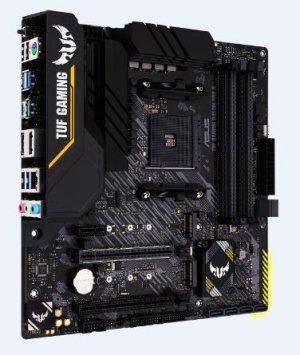

Herná základná doska AMD B450 (s päticou AM4) veľkosti micro ATX s dvoma slotmi M.2, rozhraním PCIe 3.0, mikrofónom s umelou inteligenciou pre potlačenie hluku, portami HDMI, DisplayPort, USB-A aj USB-C 3.2 Gen 2 a s podporou osvetlenia Aura Sync RGB
Komplexné chladenie: chladiče napájacej kaskády, chladič čipsetu (PCH) a nástroj Fan Xpert 2+
Konektivita najnovšej generácie: USB 3.2 Gen 2 Type-A a podpora Type-C
Kodek Realtek S1200A: Vynikajúca kvalita zvuku s bezprecedentným pomerom signál/šum 108 dB pre stereofónny výstup a 103 dB SNR vstup
Mikrofón s technológiou potlačujúcou šum pomocou AI: Poskytuje krištáľovo čistú hlasovú hernú komunikáciu
Osvetlenie Aura Sync RGB: Synchronizujte LED osvetlenie s rozsiahlym portfóliom kompatibilných PC zariadení

CPU
AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors *

• Refer to www.asus.com for CPU support list

  Chipset
  AMD B450

  Memory
  3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
  4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3533(O.C)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *
  Dual Channel Memory Architecture
  ECC Memory (ECC mode) support varies by CPU.

• Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

• The maximum memory frequency supported varies by processor.

  Graphic
  Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
  1 x DisplayPort 1.2
  1 x HDMI 2.0b
  Graphics specifications may vary between CPU types.
  Multi-GPU Support
  Supports AMD 2-Way CrossFireX Technology

  Expansion Slots
  3rd/2nd/1st Gen AMD Ryzen™ Processors
  1 x PCIe 3.0/2.0 x16 (x16 mode)
  2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
  1 x PCIe 3.0/2.0 x16 (x8 mode)
  Athlon™ with Radeon™ Vega Graphics Processors
  1 x PCIe 3.0/2.0 x16 (max at x4 mode)
  AMD B450 chipset
  1 x PCIe 2.0 x16 (x4 mode)
  1 x PCIe 2.0 x1

  Storage
  Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports
  3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics :
  1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support1
  Athlon™ with Radeon™ Vega Graphics Processors :
  1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)*1
  3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors :
  2 x SATA 6Gb/s port(s),
  Support Raid 0, 1, 10
  AMD B450 chipset :
  1 x M.2_2 socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)*2
  4 x SATA 6Gb/s port(s),
  Support Raid 0, 1, 10

  LAN
  Realtek RTL8111H 1Gb Ethernet
  TUF LANGuard

  Audio
  Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC


• Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
  Audio Feature :

• Exclusive DTS Custom for GAMING Headsets.

• Audio cover

• Audio Shielding

• Dedicated audio PCB layers

• Premium Japanese audio capacitors

  USB Ports
  Rear USB Port ( Total 8 )
  2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
  4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
  2 x USB 2.0 port(s)(2 x Type-A)
  Front USB Port ( Total 6 )
  2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
  4 x USB 2.0 port(s)(4 x Type-A)

  Software Features
  ASUS Exclusive Software
  Armoury Crate

• Aura Creator

• Aura Sync

• AI Noise-Canceling Microphone
  AI Suite 3

• Performance And Power Saving Utility
  TurboV EVO
  EPU
  Digi+ VRM
  Fan Xpert 2+

• EZ update

• PC Cleaner
  TUF GAMING CPU-Z
  AI Charger
  ASUS Turbo LAN
  DAEMON Tools
  DTS Custom for GAMING Headsets
  Norton Anti-virus software (Free Trial for 60 days)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash 3

• ASUS UEFI BIOS EZ Mode

  ASUS Special Features
  ASUS TUF PROTECTION

• ASUS DIGI+ VRM

• ASUS Enhanced DRAM Overcurrent Protection

• ASUS ESD Guards

• TUF LANGuard

• ASUS Overvoltage Protection

• ASUS SafeSlot

• ASUS Stainless-Steel Back I/O
  ASUS Q-Design

• ASUS Q-DIMM

• ASUS Q-Slot
  ASUS Thermal Solution

• Aluminum heatsink design
  ASUS EZ DIY

• BIOS FlashBack™ button

• BIOS FlashBack™ LED
  AURA Sync

• AURA RGB headers

  Back I/O Ports
  1 x PS/2 keyboard/mouse combo port(s)
  1 x DisplayPort
  1 x HDMI
  1 x LAN (RJ45) port(s)
  2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)
  4 x USB 3.2 Gen 1 (blue) Type-A
  2 x USB 2.0
  3 x Audio jack(s)
  1 x BIOS FlashBack™ Button(s)

  Internal I/O Ports
  1 x CPU Fan connector(s)
  2 x Chassis Fan connector(s)
  2 x Aura RGB Strip Headers
  1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
  1 x SPI TPM header
  6 x SATA 6Gb/s connector(s)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin EATX 12V Power connectors
  1 x Front panel audio connector(s) (AAFP)
  1 x Clear CMOS jumper(s)
  1 x System panel connector
  1 x COM port header
  1 x Speaker connector

  Accessories
  User's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x Supporting DVD
  1 x TUF Gaming Sticker
  1 x TUF Certification card(s)
  1 x M.2 SSD screw package(s)

  BIOS
  256 Mb Flash ROM, UEFI AMI BIOS

  Manageability
  WOL by PXE

  Operating System
  Windows® 10 64-bit
  Windows® 7 64-bit *3

  Form Factor
  mATX Form Factor
  9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

  Note
  *1 The M.2_1 shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed.
  *2 The M.2_2 shares bandwidth with the SATA_3/4 ports, and therefore the SATA_3/4 ports cannot be used when an M.2 device is installed.
  *3 To support Windows 7 64-bit, please install an AMD Ryzen™ 2nd Generation or Ryzen™ 1st Generation Processor.
